Eagle outline for the Evatron PC00 series enclosure

I found a neat plastic enclosure with a battery compartment that I plan on using for a current project. It is made by Evatron and comes from the PC00 series (I picked a PC003N).

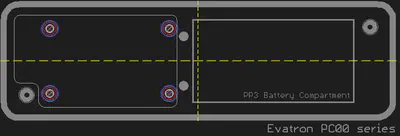

Below is a ZIP file containing the case drawn in Eagle to measurements from the datasheet. A dimension layer is included that makes the most of the internal space.

Evatron PC00 series

[Download the Eagle board file](/downloads/electronics/Evatron PC00 series.zip) - free for any use (but credit is nice)
